Paged Attention in LLMs
...explained visually!
A 37-year-old paper is trending now in AI!
Almost 4 decades ago, a computer scientist named Norm Hardy described something called the “confused deputy problem.”

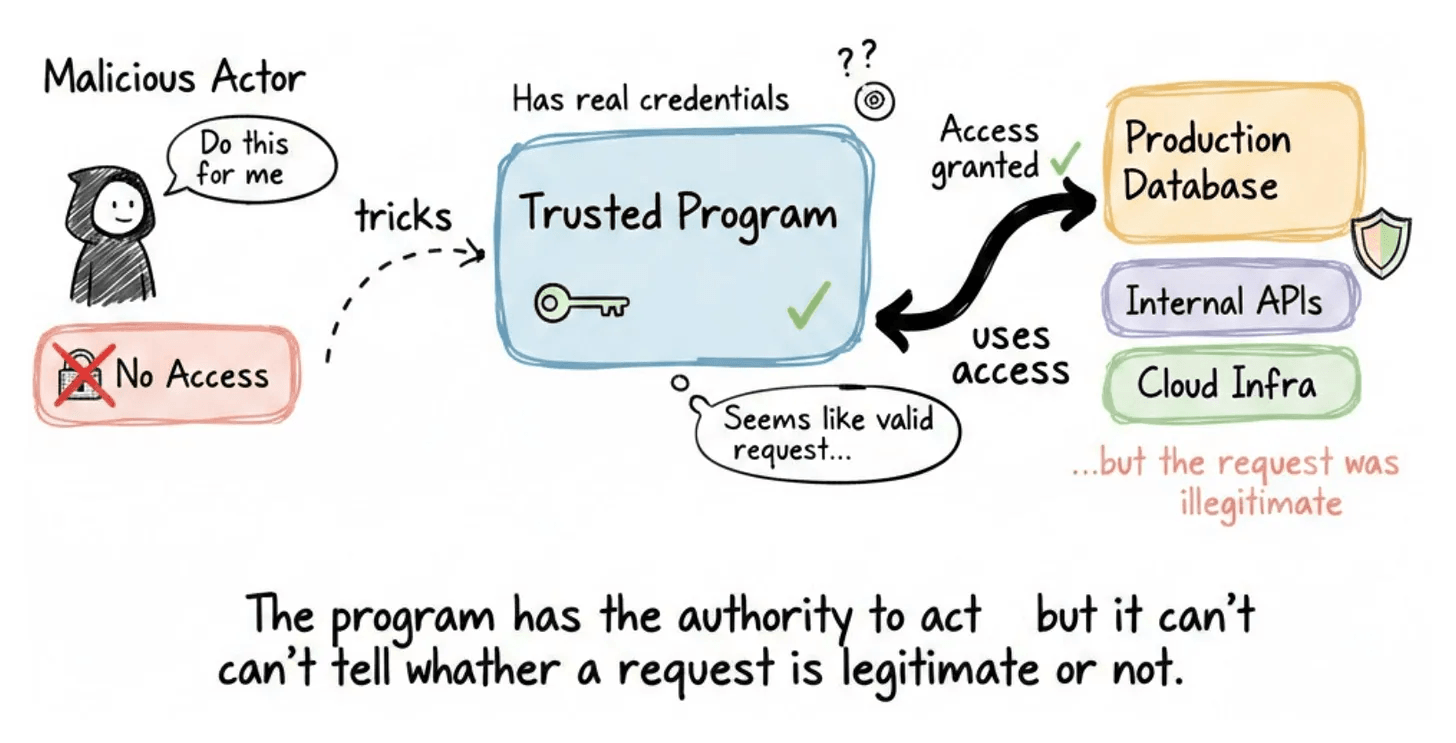

The idea is simple: a program with legitimate access gets tricked into misusing that access on behalf of someone who shouldn’t have it.
The program has the authority to act, but it can’t tell whether a given request is legitimate or not.
For decades, this was an obscure concept in security textbooks. Then we started giving AI agents access to production databases, internal APIs, email systems, and cloud infrastructure, and told them to operate on their own.
Now the confused deputy problem isn’t theoretical anymore, but rather happening every day.

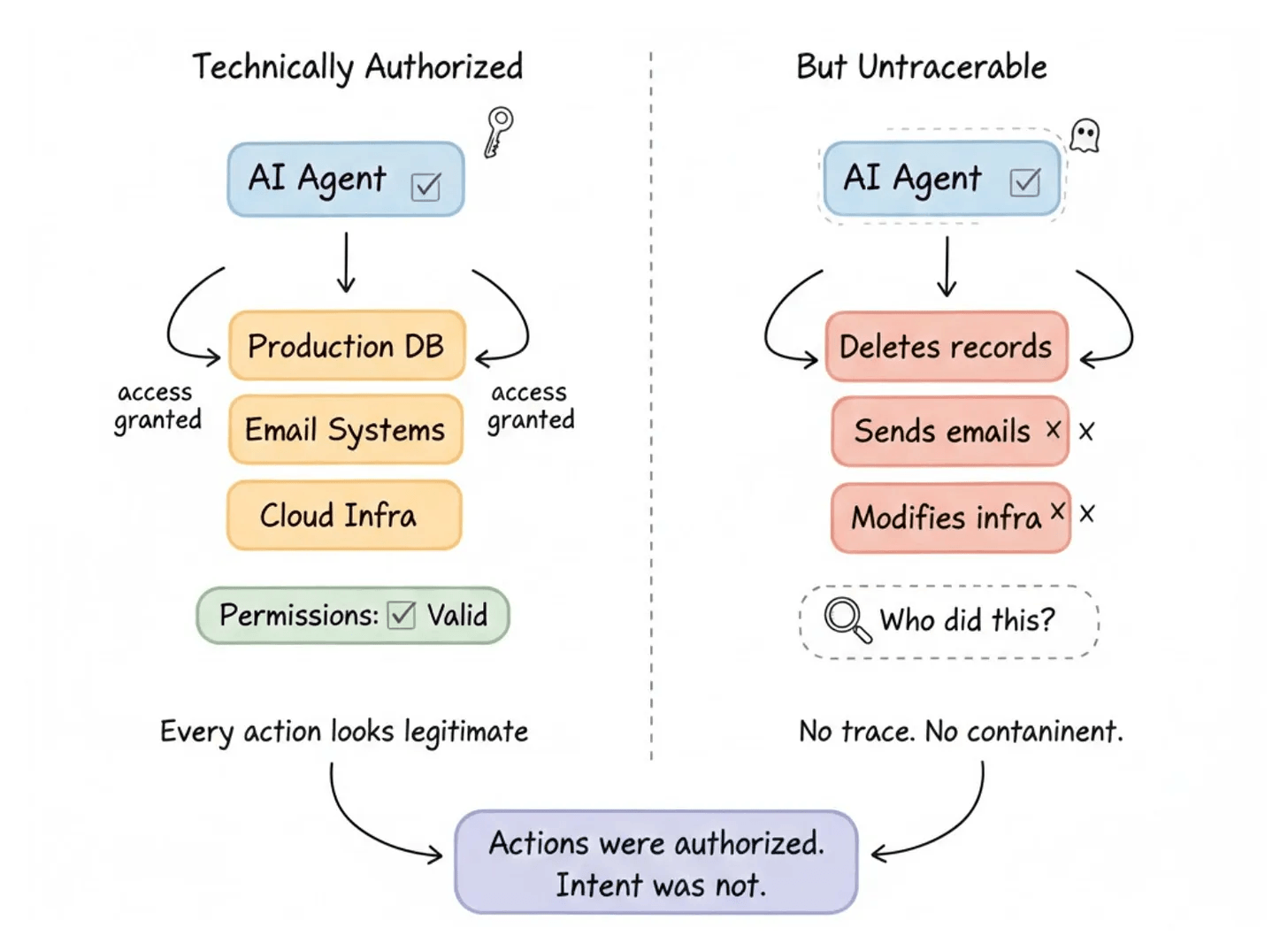

In every case, the agent had the permissions. The actions were technically authorized. But the intent behind them was not.
And the root cause is always the same: agents are powerful enough to cause real damage but anonymous enough that you can’t trace or contain what they do.
Giving agents better credentials doesn’t fix this either.

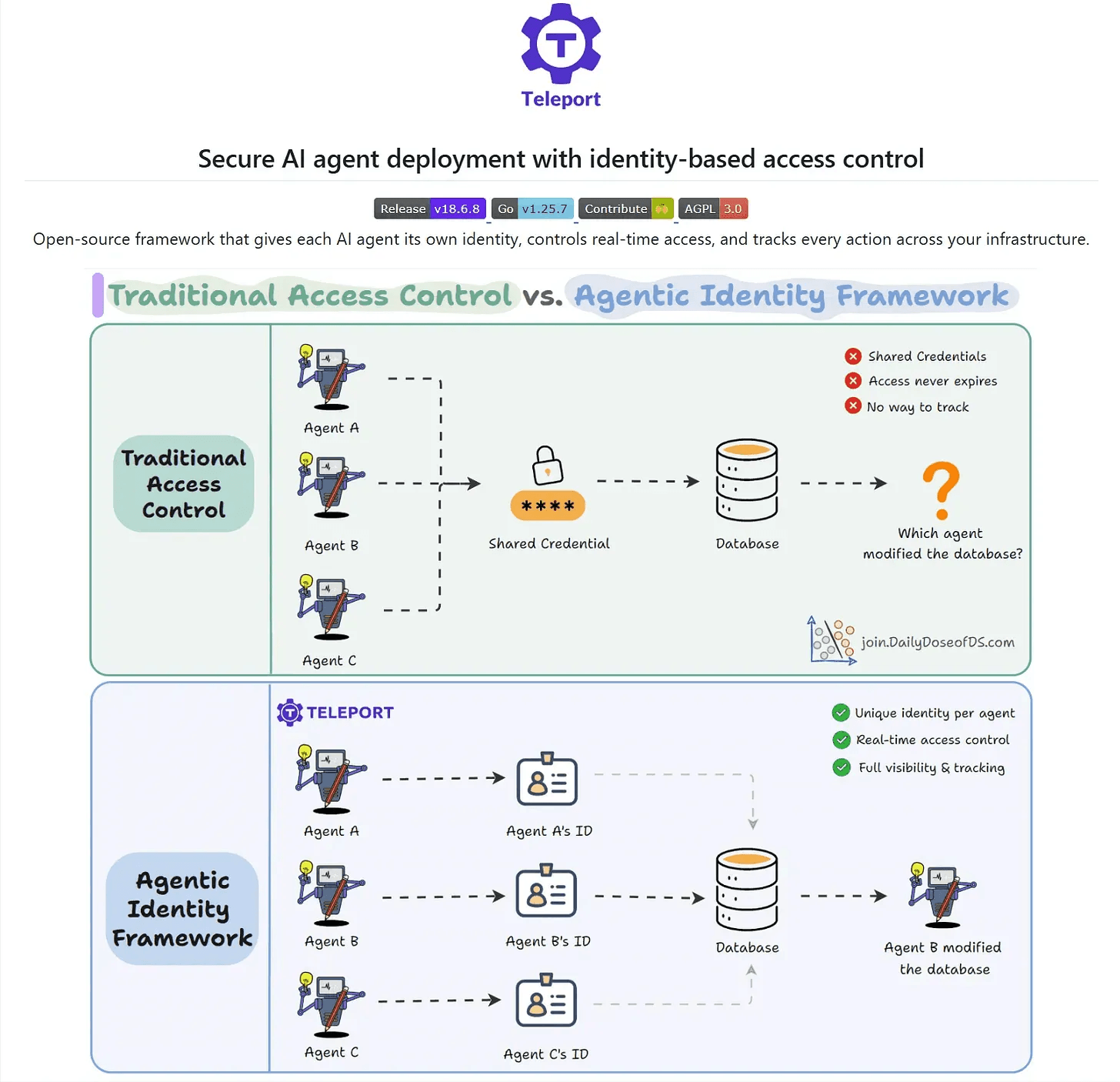

A better approach is actually implemented in Teleport, which is an open-source Agentic Identity Framework that treats identity itself as the control plane and enforces access at the moment it happens.
In a gist, instead of relying on static access patterns that weren’t designed for autonomous systems, the framework gives every agent its own cryptographic identity and enforces access at the moment it happens.
We worked with Teleport’s team to explore how their open-source Agentic Identity Framework solves this:

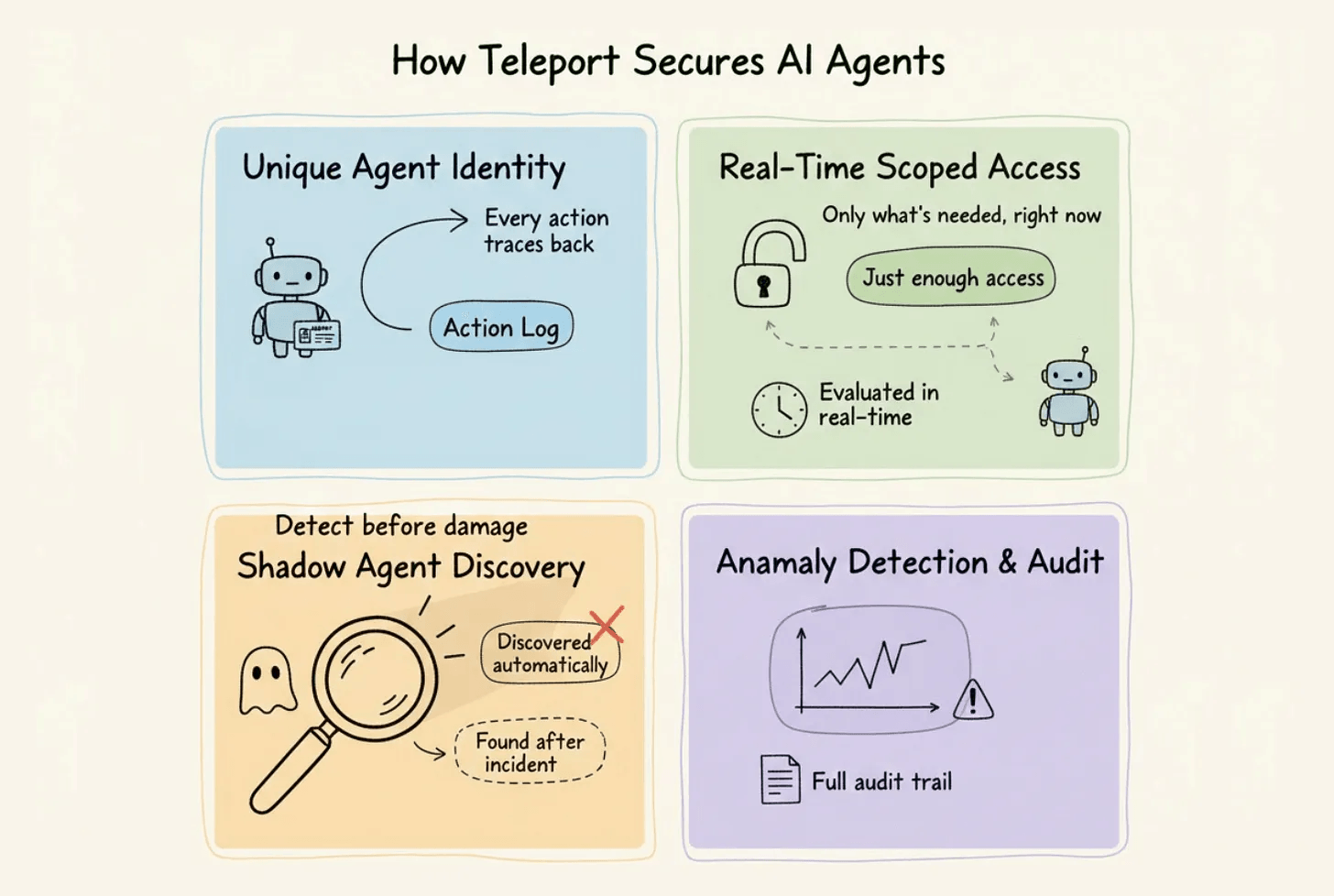

Each agent gets a unique identity, so every action traces back to a specific actor.
Access is evaluated in real-time and scoped to what the agent actually needs right now.
Shadow agents and unmanaged MCP servers are discovered automatically instead of being found after an incident.
Anomalous behavior becomes visible because the system knows what normal looks like for each agent, with full audit trails for every action.
Norm Hardy described this problem in 1988. It didn’t matter much until we started deploying autonomous agents across production infrastructure.
Now it matters, and the architecture to handle it already exists.
The framework is fully open source, so you can see the full implementation on GitHub and try it yourself.
You can find the GitHub repo here →
Paged Attention in LLMs
When you’re serving LLMs at scale, memory becomes your bottleneck before compute does.
The problem isn’t a lack of GPU memory; it’s how inefficiently we use it.
Let’s understand why this happens and how Paged Attention solves it elegantly!
KV Cache

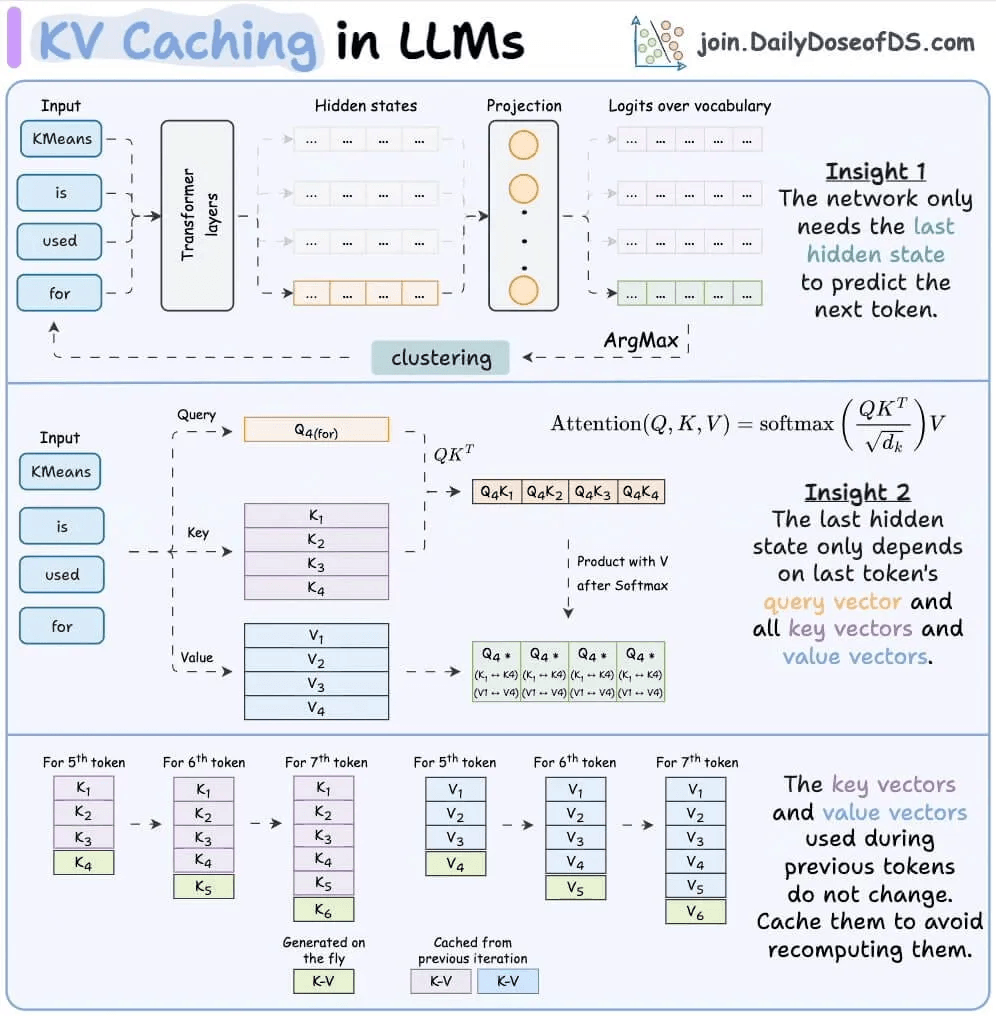

During LLM inference, the model stores the key and value vectors of all previously generated tokens in memory. This is the KV cache (we covered KV caching in detail here).
Simply put, instead of recomputing attention over all previous tokens every time a new token is generated, the model just looks up the cached values and computes attention with them.
This is crucial for efficiency. Without it, generating a 1000-token response would require recomputing attention for all previous tokens at each step. That’s O(n²) operations instead of O(n) and the speed difference is evident below:
But there’s a problem.
The memory inefficiency problem

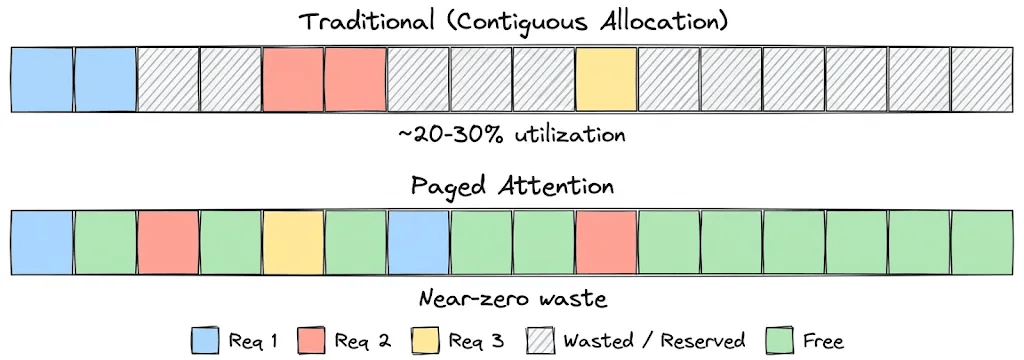

Traditional KV cache implementations pre-allocate large, contiguous memory blocks for each request.
Here’s why this is wasteful:

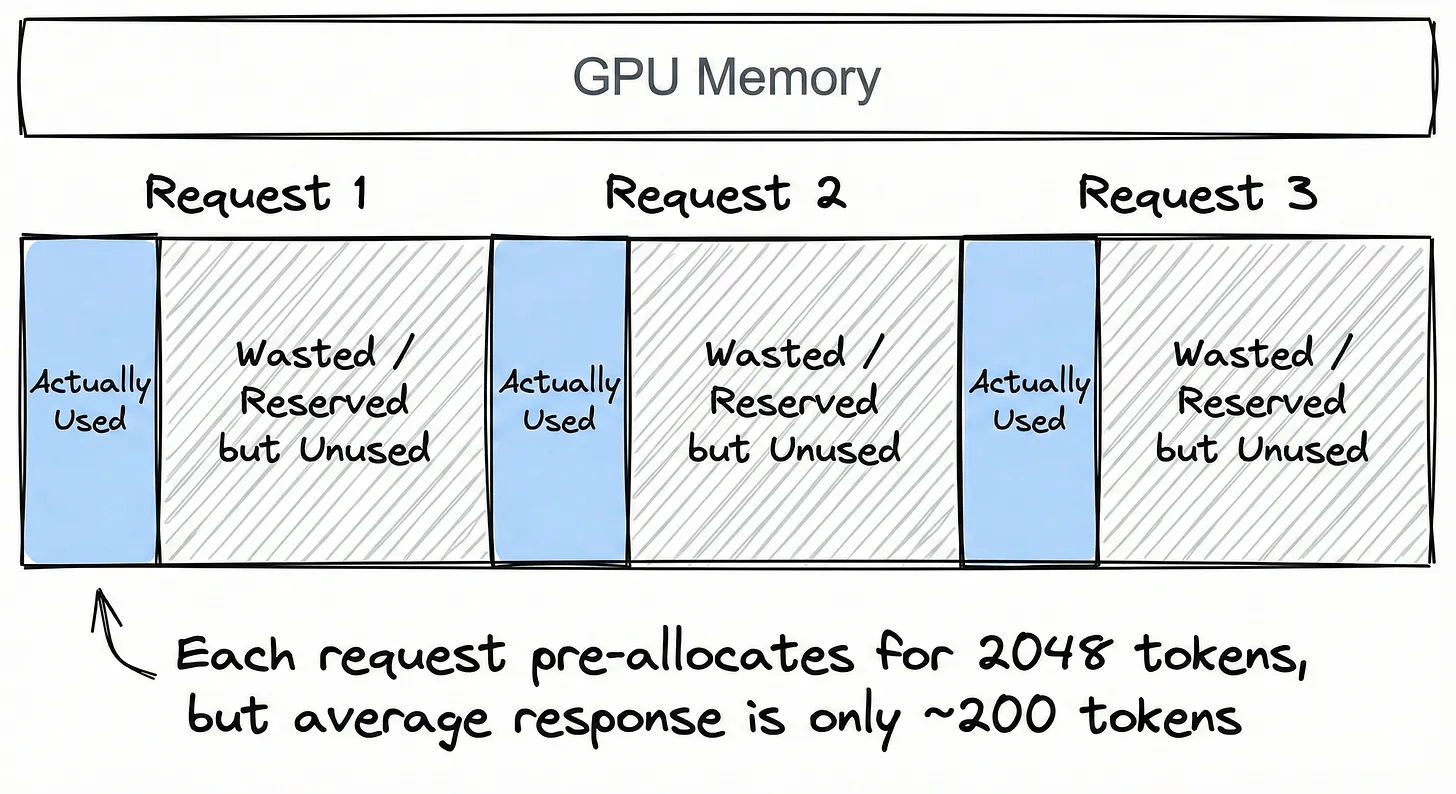

Imagine serving 100 concurrent users. You don’t know how long each response will be, so you pre-allocate space for the maximum possible length, say, 2048 tokens per request. But the average response turns out to be only 200 tokens.
You’ve just reserved 10x the memory you actually need.
And it gets worse. Each request gets its own isolated block. So even if 80 of those 100 users share the same system prompt, you’re storing 80 duplicate copies of the same KV cache entries. None of that memory can be shared or reclaimed.
As a result, you’re often using only 20-30% of your allocated GPU memory effectively. The rest is reserved but unused, and because it’s scattered across fragmented contiguous blocks, you can’t even fit new requests into the gaps.
This is the core inefficiency that kills throughput.
Paged Attention
Paged Attention solves this by borrowing the concept of virtual paging memory from operating systems.
If you’ve studied OS fundamentals, you know that programs don’t get one big contiguous chunk of RAM. Instead, the OS breaks memory into small, fixed-size pages, scatters them anywhere in physical memory, and uses a page table to map each program’s virtual addresses to physical locations.
Paged Attention does the same thing for the KV cache. Here’s how:

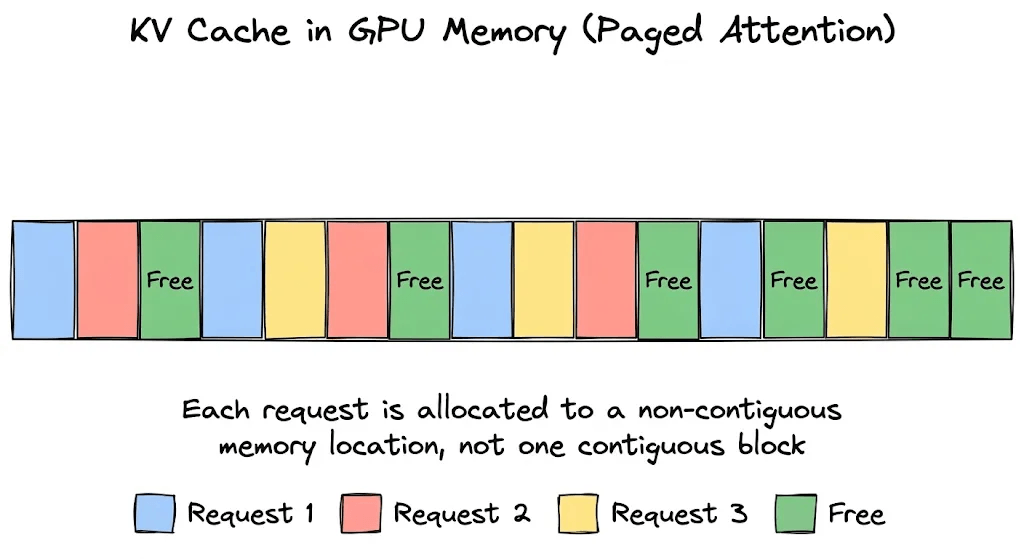

Block-level allocation: Instead of reserving one large contiguous block per request, the KV cache is divided into small, fixed-size blocks (typically 16 tokens each). These blocks can live anywhere in GPU memory and don’t necessarily need to be next to each other.

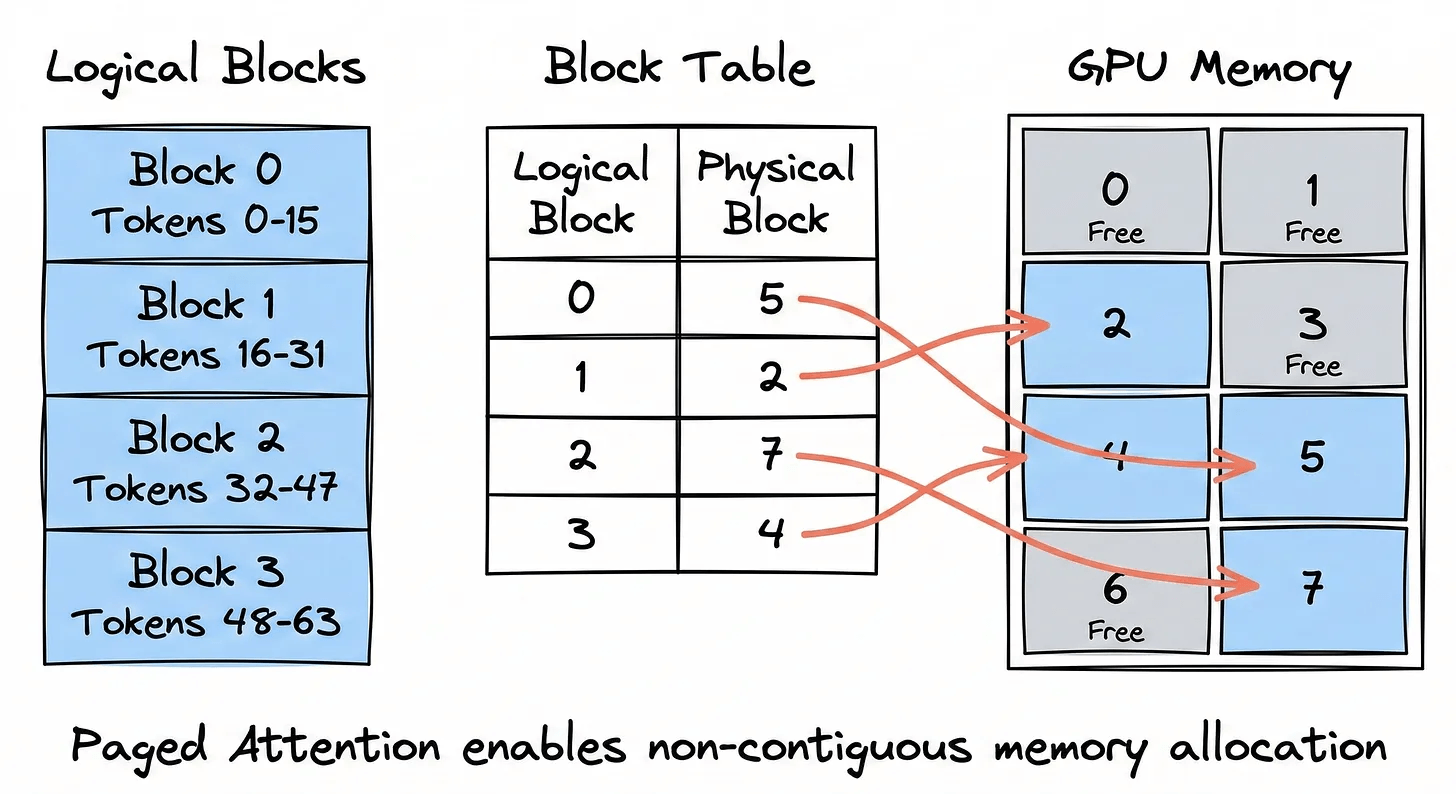

Block table (page table): Each request maintains a block table which is a simple mapping from logical block index to physical block location in GPU memory. When the model needs the KV cache for token 33, it looks up which physical block holds it, fetches it, and computes attention. The LLM doesn’t care where the block is physically sitting.
Shared prefixes: Here’s where it gets really clever. Multiple requests that share the same system prompt don’t need separate copies of the KV cache for that shared prefix. Their block tables simply point to the same physical blocks. Only when their responses diverge do new blocks get allocated for each request individually.
In a production setting, where every request typically shares a system prompt, the memory savings via shared prefix become massive.
Impact
In the original Paged Attention paper, the authors measured that existing systems only utilized 20-38% of the allocated KV cache memory effectively. The rest was wasted due to fragmentation and over-reservation.
Paged Attention can achieve:
2-4x higher throughput compared to state-of-the-art systems at the same level of latency
Near-zero memory waste, as it only allocates memory for what’s actually used
Better batching leads to more concurrent requests on the same GPU hardware
This is why vLLM, which implements Paged Attention as its core algorithm, has become the go-to inference engine for production deployments. Other frameworks like TensorRT-LLM and SGLang have also adopted similar paging mechanisms for faster inference.
This optimization becomes even more crucial when running inference servers at scale, especially with variable request patterns, shared prompts, and cost-per-request constraints.
👉 Over to you: What other OS concepts do you think could be applied to optimize LLM inference?
